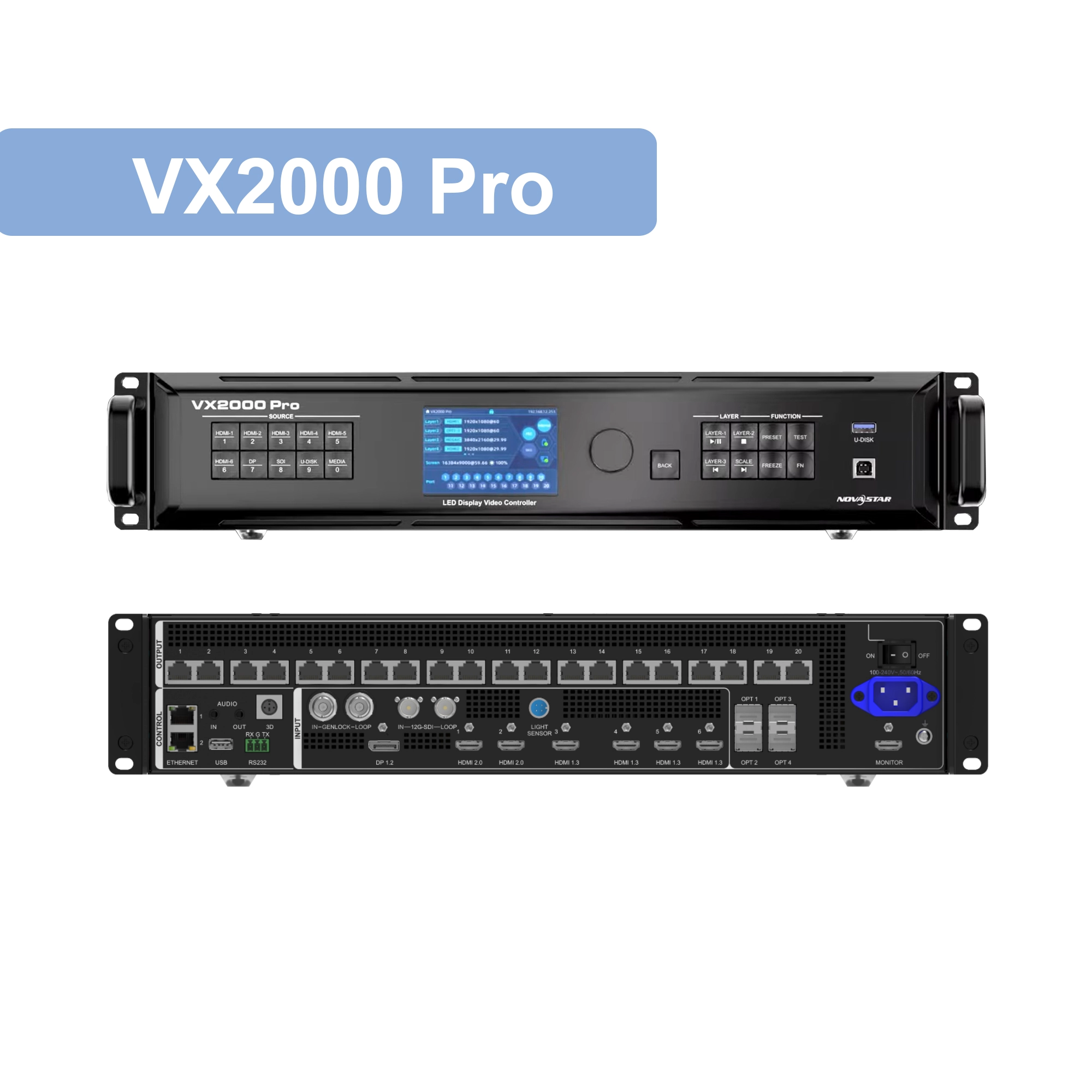

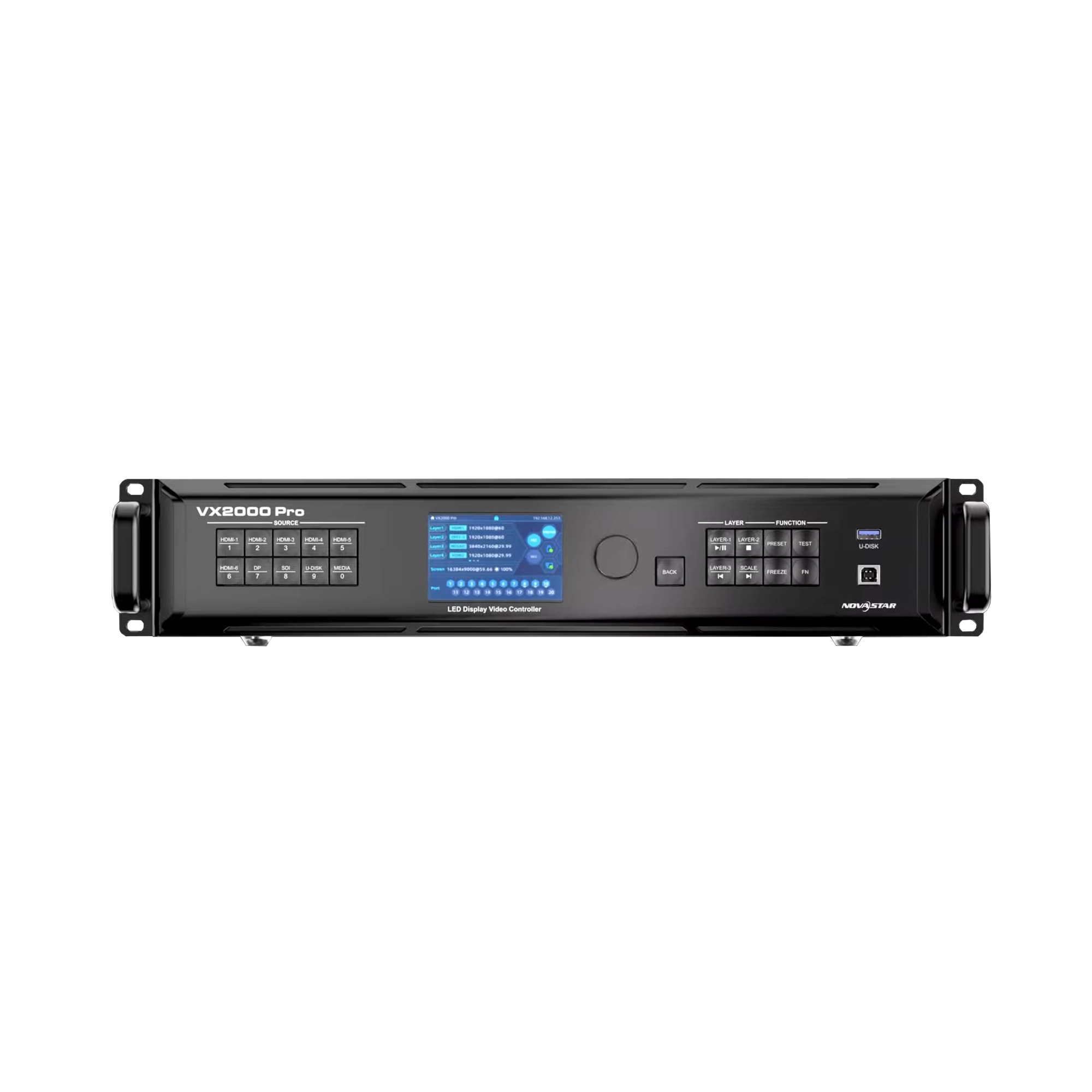

NovaStar VX2000 Pro All-in-One LED Display Controller

Applications:

Features:

Multiple connectors, free input and output

• A comprehensive range of input connectors

−1x DP 1.2

−2x HDMI 2.0

−4x HDMI 1.3

−2x 10G optical fiber port (OPT 1 & OPT 2)

−1x 12G-SDI (IN & LOOP)

−1x USB 3.0 (Play images or videos saved in a USB drive.)

• Output connectors

−20x Gigabit Ethernet ports

A single device supports up to 13 million pixels, delivering a maximum width of 16,384 pixels and a maximum height of 8192 pixels.

−4x Fiber outputs

OPT 1 and OPT 2 send the output on Ethernet ports 1~10 and 11~20 respectively.

OPT 3 and OPT 4 copy or back up the output on Ethernet ports 1~10 and 11~20 respectively.

−1x HDMI 1.3

For monitoring display.

−1x 3D connector

Directly connect a third-party 3D emitter.

• Self-adaptive OPT 1/2 for either video input or sending card output

Thanks to the self-adaptive design, OPT 1/2 can be used as either an input or output connector, depending on its connected device.

• HDMI mosaic

−Supports mosaicing of two HDMI 2.0 inputs or four HDMI 1.3 inputs.

−Max. mosaicing resolution: 4K×2K

• Fiber input mosaic

The input source connected through OPT 1/2 can be used either independently or combined to create a mosaic input source.

• Audio input and output

−Audio input accompanied with HDMI and DP sources

−3.5 mm independent audio input and output

−Adjustable output volume

• Free topology

The maximum resolution of the circumscribed rectangles loaded by the VX2000 Pro is up to 13 million pixels.

Flexible screen configuration without worrying about unused blank areas when calculating Ethernet port load capacity, allowing for optimal use of port bandwidth.

*Specific receiving cards are required.

• Low latency

By enabling the low latency feature and ByPass mode, the device delay can be reduced to 0 frame.

• Output synchronization

An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.

• EDID management

Import and export EDID files.
